Bradford White Propane Water Heaters

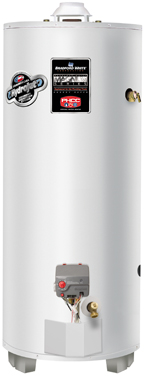

LIGHT DUTY HIGH INPUT ENERGY SAVER MODELS

These models utilize a draft diverter and are atmospherically vented. The Bradford White Icon System™ gas control valve is millivolt powered (no need for external electricity) and assists in start-up procedures and trouble shooting. NEEDS PRODUCT SPECIFIC COPY.

• 2 models (75 and 100 gallon capacities)
• 76,000-88,000 BTU/Hr.

(Sample models include: 75T-80B-3N, 100T-88B-3N)

Defender Safety System® Features:

• Advanced ScreenLok® Technology Flame Arrestor Design
• Resettable thermal switch
• Maintenance free

Standard Energy Saver Features:

• Millivolt powered gas control valve
• Piezo igniter
• Self diagnostic gas control with LED display
• Fully automatic temperature controls
• Factory installed Hydrojet 2™ Total Performance System
• Vitraglas® lining
• ¾" NPT side connections
• Non-CFC foam insulation
• 1 ¼" NPT factory installed dielectric waterway fittings
• Protective magnesium anode rod
• 4" "Snap Lock" draft diverter
• Flue baffle
• Steel tank
• T&P relief valve installed
• Brass drain valve

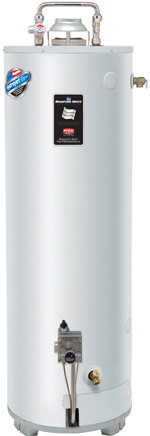

LIGHT DUTY HIGH PERFORMANCE ENERGY SAVER MODELS

These High Performance Series™ water heaters provide incredible hot water delivery from a space saving, convenient package. When tested to the industry standard residential First Hour Delivery procedure, the 25-gallon model (GX2-25S) can provide 155 gallons and the 55-gallon model (GX1-55S) will deliver 200 gallons.

• High first hour delivery
• 2 models (25-55 gallon capacities)
• 78,000-80,000 BTU/Hr.

(Sample model numbers include 25X-78B-3N, 55X-80B-3N)

Standard Features:

• High Input Combustion System
• Integrated Mixing Device
• Factory installed Hydrojet 2™ Total Performance System
• Alternate Temperature Outlet Kit
• Vitraglas® lining
• Fully automatic controls
• ¾" NPT side connections
• Non-CFC Foam Insulation
• ¾" NPT factory installed dielectric waterway fittings
• Two Protective magnesium anode rods
• 4" "Snap Lock" Draft Diverter
• Helical Fin Flue
• T&P relief valve installed
• Brass drain valve

LIGHT DUTY TTW® DEFENDER SAFETY SYSTEM® MODELS AND NON-DEFENDER ENERGY SAVER MODELS

These models offer greater installation flexibility with the ability to vent through a wall or roof with either 3" or 4" PVC, ABS or CPVC pipe.

• Vertical or horizontal venting up to 180 ft. (With 4" PVC, ABS CPVC)
• 3 models (48, 65 & 75 gallon capacities)
• 65,000-76,000 BTU/Hr.
• FVIR Defender Safety System® on all Models 75,000 BTU/Hr. and below
• Side connections for space heating
• Thermostat adjustable up to 180° F

(Sample model numbers include:TW4-50S-67FC-3X & TW4-75S-76C-3X)

Bradford White ICON System™ Features:

• Enhanced Performance
• Advanced Temperature Control System
• Intelligent Diagnostics
• Pilot On Indication
• Green LED
• Separate Immersed Thermowell

Defender Safety System® Features:

• Advanced ScreenLok® Technology Flame Arrestor Design
• Flammable vapor sensor
• Maintenance free

Standard Energy Saver Features:

• Powerful blower motor
• Spark to pilot ignition system
• Electronic gas control valve
• Electronic Ignition
• Horizontal and Vertical Venting
• Vitraglas® lining
• ¾" NPT side connections for space heating
• Protective magnesium anode rod
• ¾" NPT factor installed dielectric waterway fittings
• Factory installed Hydrojet® 2™ Total Performance System
• 2" Non CFC foam insulation
• Brass drain valve
• T&P relief valve installed

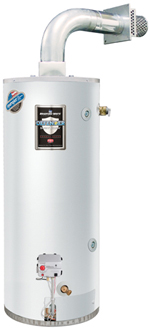

LIGHT DUTY HIGH INPUT DIRECT VENT DEFENDER SAFETY SYSTEM® ENERGY SAVER MODELS

Our High Input Direct Vent (DH) water heaters offer greater recovery capabilities, larger gallon capacities and Side connections for space heating. These too utilize a co-axial (pipe inside a pipe) venting system. No electricity required.

• Closed Combustion, Uses Outside Air for Combustion
• Higher Inputs and Gallon Capacities
• 3 models (48, 65 and 75 gallon capacities)
• 50,000 - 60,000 BTU/Hr.
• FVIR Defender Safety System®

(Sample model numbers include:DH-50T-50B-3X & DH-75T-60B-3X)

Bradford White ICON System™ Features:

• Enhanced Performance
• Advanced Temperature Control System
• Intelligent Diagnostics
• Pilot On Indication
• Green LED
• Separate Immersed Thermowell

Standard Energy Saver Features:

• Fully automatic controls
• ¾" NPT factory installed dielectric waterway fittings
• Co-axial rotational venting
• ¾" NPT side tappings for space heating
• Optional vent kit allows up to 8' horizontal and 8' vertical venting extensions
• Factory installed Hydrojet® Total Performance System
• Vitraglas® lining
• No electrical power necessary
• Protective magnesium anode rod
• Piezo igniter
• T&P valve installed
• Reinforced seals
• Brass drain valve
• 1" Non-CFC foam insulation
• Closed Combustion

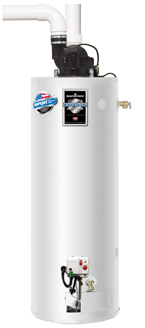

LIGHT DUTY POWER DIRECT VENT DEFENDER SAFETY SYSTEM® ENERGY SAVER MODELS

Light Duty Direct Vent models are the solution to installations that lack sufficient air for combustion and require installation flexibility. All models can vent vertically or horizontally and are also approved for unbalanced, direct-vent closed combustion applications.

• Closed Combustion, Uses Outside Air for Combustion
• Higher Inputs and Gallon Capacites
• 3 models (48, 65, & 75 gallon capacities)
• 60,000 - 70,000 BTU/Hr.
• FVIR Defender Safety System®

(Sample model numbers include:PDX-50S-60FC-3X & PDX-75S-70FC-3X)

Bradford White ICON System™ Features:

• Enhanced Performance
• Advanced Temperature Control System
• Intelligent Diagnostics
• Pilot On Indication
• Green LED
• Separate Immersed Thermowell

Standard Energy Saver Features:

• Factory installed Hydrojet® Total Performance System
• Vitraglas® lining
• ¾" NPT factory installed dielectric waterway fittings
• ¾" NPT side tappings for space heating
• T&P valve installed
• Brass drain valve
• 2" Non-CFC foam insulation
• Optional concentric vent kit termination
• Vertical or horizontal venting
• Flammable vapor sensor
• Electronic gas control
• Powerful blower motor
• Spark-to-pilot ignition

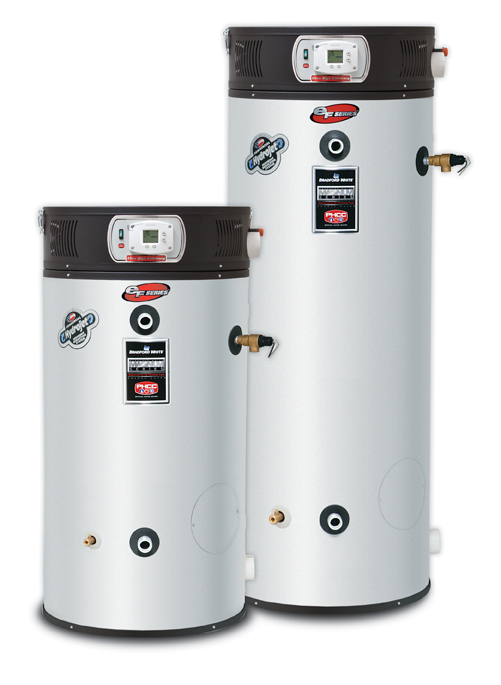

EF SERIES® ULTRA HIGH EFFICIENCY ENERGY SAVER MODELS

The eF Series® utilizes exclusive designs and technologies for unsurpassed efficiency, installation flexibility and quiet operation. With thermal efficiencies as high as 99.1% these units are the most efficient of their kind in the industry. The eF Series® can vent vertically or horizontally with either 3 or 4 PVC, CPVC or ABS vent pipe, and is approved for direct vent closed combustion applications or those applications that require inside air for combustion.

• 16 Models (60-100 gallon capacities)
• 125,000-399,999 BTU/hr.
• Up to 99.1% thermal efficiency
• Power vent or Power direct vent

(Sample model numbers include: EF-60T-125E-3N, EF-100T-150E-3N, EF-100T-300E-3NA, & EF-100T-399E-3NA)

• Low NOx Premix Power Burner
• Electronic Ignition
• Hydrojet® Sediment Reduction System
• Vitraglas® lining
• Sanitizing capability
• Vertical or Horizontal venting
• Optional Concentric Vent Kit termination
• Hand hole cleanout
• Multiple dielectric waterway fittings
• Magnesium anode rods
• ASME construction available
• T&P relief valve installed
• Brass drain valve
• Design certified by CSA International

ELECTRONIC IGNITION FLUE DAMPER ENERGY SAVER MODELS

Electronic ignition flue damper models provide solutions to applications with various demands for hot water. A new Honeywell Integrated Control System combines temperature control and system ignition functions into a single control board with digital LCD display. Operation mode digitally displays the adjustment of temperature setting (70°F-180°F), and adjustment of degree setting (°F to °C or °C to °F). Service Mode has the capability of adjusting the temperature setting up to 180°F (82°C), adjusting the degree setting (°F to °C, or °C to °F), locking the maximum temperature setting that can be adjusted in operation mode, displaying the average water temperature (if water heater has two sensors), displaying the upper temperature sensor, displaying the lower temperature sensor, displaying the flame current of the pilot flame, and displaying diagnostic codes.

• 36 Models (38-100 gallon capacities)
• 125,000-505,000 BTU/hr
• Atmospheric Vent, or PowerVent (with optional power vent kit)

(Sample model numbers include: D75T-125-3N, D100T-199-3N & D100L-270-3N)

• Honeywell Integrated Control
• Digital LCD Display
• Electronic Ignition
• Automatic Flue Damper
• Hydrojet® Sediment Reduction System
• Vitraglas® lining
• Multiple dielectric waterway connections
• Sanatizing Capability
• Hand Hole Cleanout
• Magnesium anode rods
• ASME construction available (above 200,000 BTU/hr)
• NSF construction available
• Low NOx consctruction available
• North Carolina Code compliant
• T&P Relief Valve installed
• Brass drain valve
• Design certified by CSA International

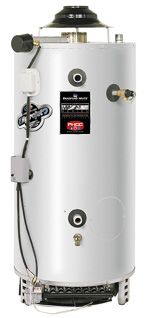

MILLIVOLT IGNITION FLUE DAMPER ENERGY SAVER MODELS

ASME & Non-ASME models with Millivolt Technology provide high-powered performance while making installations easier and less complicated. Using self-generated power from the pilot and thermopile assembly to operate the flue damper, there's no need to hard wire one for electricity or to locate it near an outlet. The continuous pilot ignition system eliminates lockout situations and utilizes a simplified control system for easier operation.

• 18 Models (38-100 gallon capacities)
• 125,000-270,000 Btu/hr
• Atmospheric Vent
• No electricity required
• Millivolt ignition

Extra Features:

• Automatic Flue Damper
• Standing Pilot
• Hydrojet® Sediment Reduction System
• Vitroglas® Lining
• Multiple dielectric waterway connections
• Hand Hole Cleanout
• Magnesium Anode Rods
• ASME construction available (above 200,000 BTU/hr.)
• NSF construction available
• Low NOx construction available
• North Carolina code compliant
• T&P relief value installed
• Brass drain valve
• Design certified by CSA International

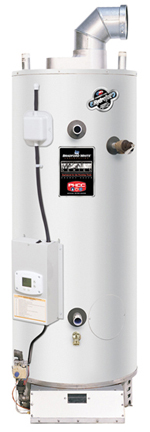

POWER DIRECT VENT CO-AXIAL VENT ENERGY SAVER MODELS

Power Direct Vent ASME and Non-ASME models are ideal for installations where options are limited due to negative air pressure or corrosive air supply. These units utilize a co-axial concentric (pipe inside a pipe) venting system that draws air in for combustion through one pipe and exhausts products of combustion through the other.

• 4 Models (80-100 gallon capacities)
• 300,000-360,000 BTU/hr.
• Power Direct Vent Co-Axial Vent

(Model numbers include: PDV-80T-300-3N & PDV-100T-360-3NA)

• Honeywell Integrated Control
• Digital LCD Display
• Electronic Ignition
• Automatic Blower Motor
• Hydrojet® Sediment Reduction System
• Vitraglas® lining
• Sanitizing Capability
• Hand Hole Cleanout
• Multiple dielectric waterway connections
• Magnesium anode rods
• ASME construction available (above 200,000 BTU/hr.)
• NSF construction available
• Low NOx construction available
• T&P relief value installed
• Brass drain value
• Design certified by CSA International

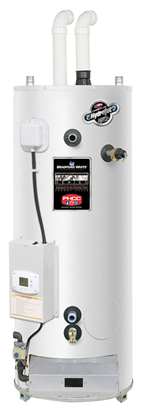

POWER DIRECT VENT INDEPENDENT VENT ENERGY SAVER MODELS

Power Direct Vent models with balanced independent venting are ideal for installations where negative air pressure or a corrosive air environment is present, particularly when the water heater cannot be installed in close proximity to an outside wall. Venting lengths up to 60 equivalent feet allow these units to be placed in the most airtight, confined or corrosive spaces.

• 8 Models (80-100 gallon capacities)
• 150,000-250,000 BTU/hr.
• Power Direct Vent Independent Vent

(Sample model numbers include: PDV-80S-150-3N & PDV-100S-200-3N)

Standard Features:

• Honeywell Integrated Control
• Digital LCD Display
• Electronic Ignition
• Automatic blower motor
• Hydrojet® Sediment Reduction System
• Vitraglas® Lining
• Sanitizing Capability
• Hand hole cleanout
• Multiple dielectric waterway fittings
• Magnesium anode rods
• ASME construction available (above 200,000 BTU/hr.)
• NSF construction available
• Low NOx construction available
• T&P relief valve installed
• Brass drain valve
• Design certified by CSA International

FAN INDUCED ATMOSPHERIC VENT ENERGY SAVER MODELS

Bradford White's commercial fan-assisted combustion models were developed in order to provide incredible output and a great volume of hot water from a relatively small commercial water heater.

• 4 Models (65-80 gallon capacities)
• 652,000-725,000 BTU/hr.
• Fan induced

(Model numbers: D65T-625 & D80T-725)

Standard Features:

• Honeywell Integrated Control
• Digital LCD Display
• Electronic Ignition
• Hydrojet® Sediment Reduction System
• Vitraglas® lining
• Sanitizing capability
• Hand hole cleanout
• Multiple dielectric waterway fittings
• Magnesium anode rods
• ASME construction available
• NSF construction available
• T&P relief valve installed
• Brass drain valve
• Design certified by CSA International
