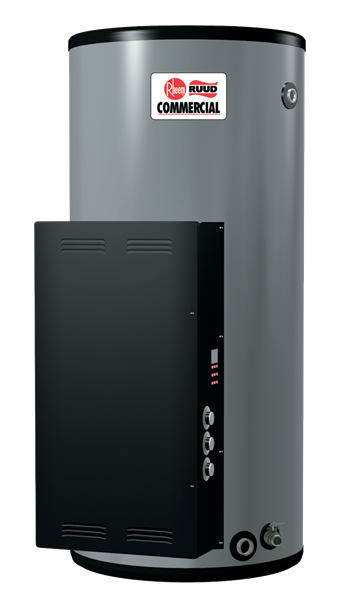

Rheem Electric Water Heaters

Heavy-Duty Series

Features:

• System Sentinel™ L.E.D. diagnostic system
• Surface mounted and immersion thermostat models available
• Lifeguard stainless steel elements
• 208, 240, 277 and 480 voltages
• Manual reset high limit control
• Magnetic contactors and integral fusing
• Hot outlet and cold inlet are 1-1/2" NPT dielectric nipples which prevent excessive turbulence of heated water and results in optimum tank draw.
• 3" Rigid foam insulation.
• Heavy duty anode rods
• Full port, full blow, brass drain valve
• Factory Installed AGA/ASME rated Temperature and Pressure relief valve

Extra Info:

• 6 KW - 81 KW
• 208, 240, 277 and 480 voltages
• Surface mounted and immersion thermostat models available
• 50, 85 and 120 gallon capacities System Sentinel™ LED diagnostic system

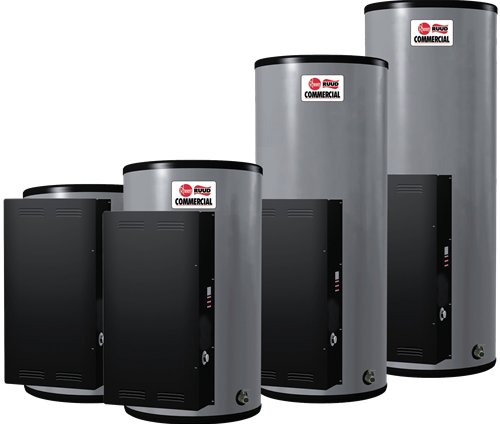

PowerPack Series

Features:

• System Sentinel™ L.E.D. diagnostic system
• Immersion Thermostat
• Lifeguard stainless steel elements
• 208, 240, 277, and 480 voltages
• Manual reset high limit control
• Magnetic contactors and integral fusing
• Hot outlet and cold inlet are 3/4" NPT plastic lined nipples which prevent excessive turbulence of heated water and results in optimum tank draw
• 85% of the tank surface area of all Rheem-Ruud Commercial Electric products are insulated with 2-1/2" of rigid polyurethane foam insulation
• Heavy duty anode rods
• Full port, full flow brass drain valve
• Factory installed AGA/ASME rated Temperature and Pressure relief valve

Extra Info:

• 3 KW - 36 KW
• 208, 240, 277 and 480 voltages
• System Sentinel™ LED diagnostic system
• Immersion thermostat
• Lifeguard™ stainless steel element
• 12, 20, 30 and 40 gallon capacities

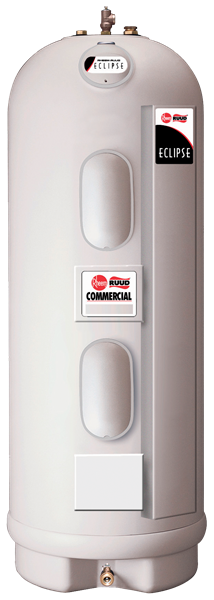

Eclipse Series

Features:

• Exclusive 10-year limited tank warranty
• 85 and 105 gallon capacities
• Inputs from 12, 18 and 24 KW
• 208, 240, 277 and 480 voltages, single
  or three phase
• Polybutene tank design – no anode rods

Extra Info:

• Exclusive 10-year limited tank warranty
• 85 and 105 gallon capacities
• Inputs from 12, 18 and 24 KW
• 208, 240, 277 and 480 voltages, single or three phase
• Polybutene tank design – no anode rods

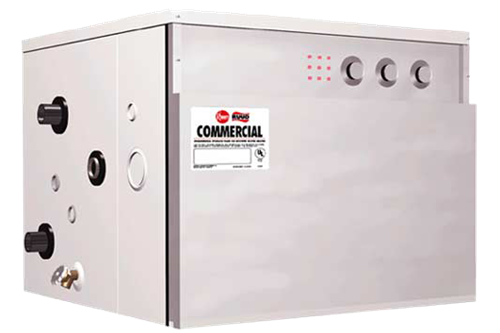

Booster Series

Features:

• 6 KW - 54 KW
• 208, 240, 277 and 480 voltages
• System Sentinel™ LED diagnostic system
• Immersion thermostat
• Manual reset high limit control
• 6" stainless steel legs
• 3-Year limited tank warranty

Extra Info:

• 6 KW - 54 KW
• 208, 240, 277 and 480 voltages
• System Sentinel™ LED diagnostic system
• Immersion thermostat
• Manual reset high limit control
• 6" stainless steel legs

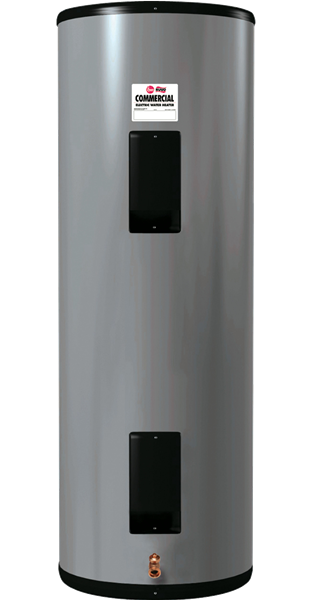

Light-Duty Series

Features:

• 208, 240, 277 and 480 voltages
• Porcelain enamel lined tank
• Heavy duty anode rod
• 2 1/2" of rigid polyurethane foam insulation provides superior insulating qualities resulting in reduced operating costs
• Baked enamel steel jacket
• Patented resistor heating elements
• Surface mounted thermostat
• Manual reset high limit control
• Durable brass drain valve
• Factory installed AGA/ASME rated Temperature and Pressure relief valve

Extra Info:

• 3 KW - 12 KW
• 208, 240, 277 and 480 voltages
• 30, 40, 50, 65, 80 and 120 gallon capacities
• Porcelain enamel lined tank
• Heavy-duty anode rod

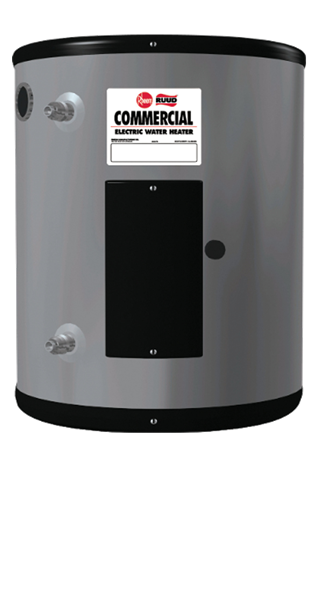

Point-of-Use Series

Features:

• 120, 208, 240, 277 and 480 voltages
• Porcelain enamel lined tank
• Heavy duty anode rod
• Rigid polyurethane foam insulation provides superior insulating qualities resulting in reduced operating costs.
• Baked enamel steel jacket
• Patented resistor heating element
• A surface mounted thermostat automatically cycles on and off to maintain the water temperature at a desired preset level.
• Manual reset high limit control
• Factory installed AGA/ASME rated Temperature and Pressure relief valve
• Optional wall mounting kit

Extra Info:

• 1440 - 6000 watts
• 120, 208, 240, 277 and 480 voltages
• 2.5, 6, 10, 15, 20 and 30 gallon capacities
• Porcelain enamel lined tank
• Heavy-duty anode rod
