Rheem Gas Water Heaters |
|
| |
|
|
|
| |
SPIDERfire
|
Rheem-Ruud SPIDERfire Gas Commercial Water Heaters are specifically designed to provide customers with maximum savings on operation, space and installation. Designed with the most advanced technology available, these products optimize efficiency and operating reliability.
Features:
- 95% Maximum thermal efficiency dramatically reduces operating costs
- No chimney required; power or direct vent using plastic pipe
- Low NOx emissions. Meets SCAQMD Rule 1146.2
- Corrosion resistant, high efficiency 3-pass heat exchanger
- Self-diagnostic LCD electronic control
- Direct spark ignition
- 185° F maximum temperature setting
- Zero clearance to all combustible surfaces
- Full flow drain valve
- Front and back water connections
- Factory installed AGA/ASME rated T&P relief valve
- Sealed-combustion design delivers 95% thermal efficiency dramatically reducing operating cost
- 130,000 - 350,000 BTU/HR.
- 100 gallon capacity
Extra Info:
- Sealed-combustion design delivers 95% thermal efficiency dramatically reducing operating cost
- 130,000 - 350,000 BTU/HR.
- 100 gallon capacity
|
|
| |
|
|
| |

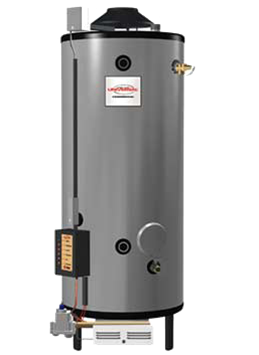

Universal Heavy Duty Series
|
Features:
- Small jacket diameters
- Short floor-to-vent heights
- Multiple Water Connections
- System Sentinel™ LED diagnostic system
- Patented multiflue design
- Low profile automatic flue damper
- Spark-to-pilot ignition system
- Full port, full flow brass drain valve
- Factory Installed AGA/ASME rated Temperature and Pressure relief valve
- Stainless steel burners
- 180 degree max operating temperature
- Hand-hole cleanout
- Stainless steel burners 180ºF max operating temperature
- LED diagnostics on all damper assemblies for easier service
- Certified for a 150 PSI maximum working pressure (160 PSI for ASME models)
- Manual reset high limit (ASME models)
- Low NOx models available
Extra Info:
- Space-saving tank design
- 98,000 - 400,000 BTU/Hr.
- System Sentinel™ LED diagnostics
- Multi-flue tank design
| |
| |
|
|
| |
AdvantagePlus Series
|
Features:
- 316L stainless steel tank construction (requires no anode rods).
- No chimney required - vents up to 40 feet using 3" schedule 40 PVC, CPVC or ABS pipe - direct vent using plastic pipe
- Thermal efficiency of 95% dramatically reduces operating costs
- 85 equivalent feet of vent length
- Low NOx emissions. Meets SCAQMD Rule 1146.2\High impact plastic jacket eliminates dents
- 2" of non-CFC, polyurethane foam insulation
- Less than 1/2 degree per hour heat loss (R17)
- Corrosion resistant, high efficiency 90/10 cupronickel heat exchanger
- Self-diagnostic electronic control with digital readout for water temperature, set point and differential
- Removable front cover allows easy access to equipment (24" service clearance recommended)
- Temperature range from 70ºF to 160ºF (maximum temperature setting of 180ºF available on HE45-160 and HE45-199 booster models only)
- Zero clearance to all combustible surfaces
- Factory installed AGA/ASME rated T&P relief valve
Extra Info:
- Sealed-combustion design delivers 95% thermal efficiency
- 100,000 - 199,900 BTU/Hr.
- 55, 80, and 119 gallon capacities
| |
| |
|
|
| |
Xtreme Series
|
Features:
- Small jacket diameters
- Short floor-to-vent heights
- Multiple water connections
- System Sentinel™ LED diagnostic system
- Patented multiflue design
- Low profile automatic flue damper
- Specialized burner assembly
- Spark-to-pilot ignition system
- Full port, full flow brass drain valve
- Factory installed AGA/ASME rated Temperature and Pressure relief valve
- Hand-hole cleanout
- Round premix stainless steel burners
- Manual reset high limit
Extra Info:
- High-input – 550,000 - 715,000 BTU/hr.
- Available in 90 gallon capacity
- Space-saving tank design
- Low profile automatic flue damper
| |
| |
|
|
| |

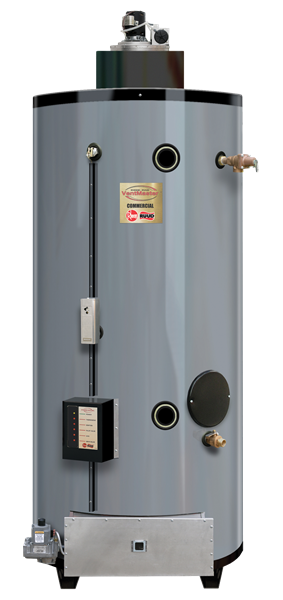

VentMaster Series
|
Features:
- NON-CONDENSING DESIGN - Helps prevent corrosion - no condensate pump or drain needed
- INTEGRAL AUTOMATIC BLOWER - With 110/120 volt electrical system
- PATENTED MULTI-FLUE TANK DESIGN - Proprietary steel formulation, patented multi-flue design, and two coats of high temperature porcelain enamel to maximize corrosion resistance result in a superior heat exchanger design
- SPARK-TO-PILOT IGNITION SYSTEM - Standard on all models. Provides reliable and energy saving ignition sequencing by igniting the pilot only when the thermostat calls for heat
- System Sentinel™ LED Diagnostic System
- Full port, full flow brass drain valve
- No masonry or metal vent chimney required
- Installs with 3" or 4" schedule 40 PVC pipe
- Vents up to 50 feet
Extra Info:
- Power direct vent – 100 gallon, 150,000 & 250,000 BTU/Hr.
- Vents up to 50 feet
- Patented automatic blower
- Spark to pilot ignition system
| |
| |
|
|
| |

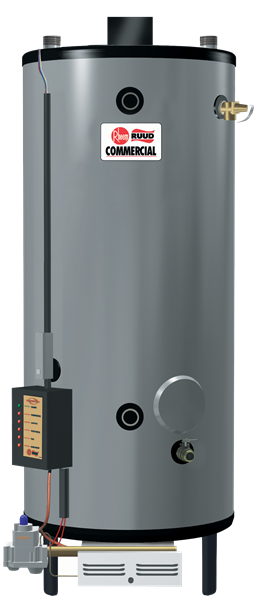

Induced Draft Series
|
Features:
- Small jacket diameters
- Short floor-to-vent heights
- Multiple water connections
- System Sentinel™ LED Diagnostic System
- Patented multiflue design
- Factory installed draft inducer - provides an induced draft allowing higher BTU's to be vented through a 6" vent
- 6" Category 1 appliance - allows for easy upgrade or retrofit of existing applications
- Spark-to-pilot ignition system
- Full port, full flow brass drain valve
Extra Info:
- Patented multi-flue tank design
- 250,000 - 360,000 BTU/HR
- System Sentinel™ LED diagnostic
- Universal space saver design system
| |
| |
|
|
| |
Medium-Duty Series
|
Features:
- Space saving design - short heights and small jacket diameters result in greater installation flexibility
- Long life tank design - proprietary steel formulation with a unique coat of high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design, Dual magnesium anode rods are installed for longer tank life
- Foam insulation – rigid foam insulation provides superior insulating qualities, improves efficiency and reduces operating costs. Our patented process of injecting foam into the insulating cavity adds additional durability and dent resistance to the heater jacket
- Automatic controls – control system is designed to shut off gas if the pilot flame is extinguished. Relighting is a safe, easy procedure. Thermostat settings to 160°F. A built-in gas pressure regulator assures even gas flow
- Temperature and pressure relief valve – AGA/ASME rated and factory installed
- Full port, full flow brass drain valve
Extra Info:
- 50,000 - 80,000 BTU/Hr.
- 50, 60, 75 and 100 gallon capacities
- Vents up to 100 feet
- Short floor-to-vent heights
| |
| |
|
|
| |

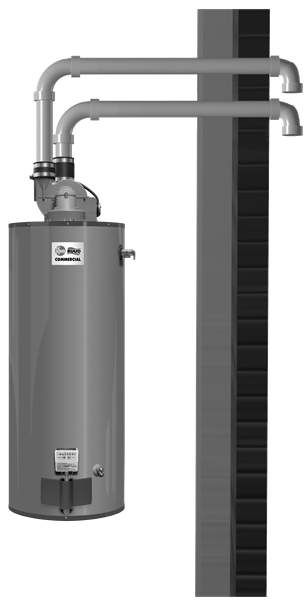

Power Direct Vent
|
Features:
- FVIR Compliant
- Maintenance free – no filter to clean
- Flammable Vapor Detection Sensor
- Protective control system that disables the heater in the presence of flammable vapor accumulation
- Flexible Venting Options
- Long venting lengths up to 100 feet
- PVC, ABS, or CPVC vent pipe options
- Vertical or horizontal termination
- Self-Diagnostic System
- Integrated self-diagnostic system control takes the guess work away
- Environmentally Friendly Burner
- 40ng/J compliant NOx design for low nitrous oxide emissions
- High Altitude Compliant
- Models are certified for applications up to 7,700 or 10,200 feet above sea level
- Self-Cleaning
- Reduces fuel costs
- Provides more hot water
- Longer Life
- Patented magnesium anode rod design incorporates a special resistor that protects the tank from corrosion
- Provides longer tank life than using standard magnesium anode rods
- Plus…
- Durable silicon nitride ignitor (HSI)
- Standard 110 volt electrical connection
- Exceeds National Appliance Energy Conservation Act (NAECA) and ASHRAE requirements
Extra Info:
- 47,000 - 75,100 BTU/Hr.
- 50, 63 and 75 gallon capacities
- Small jacket diameters
- Flammable vapor detection sensor
| |
| |
|
|
| |

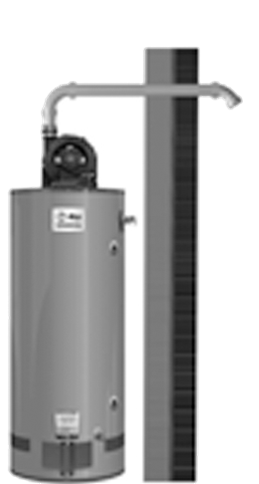

Power Vent
|
Features:
- Vents up to 34 feet using 3" PVC pipe and up to 95 fet using 4" PVC Pipe
- Long life tank design - proprietary steel formulation with a unique coat of high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design
- Guardian System - Air/fuel shut¬off system offers double protection
- Maintenance free – no filter to clean
- Flammable Vapor Detection Sensor - Protective control system that disables the heater in the presence of flammable vapor accumulation
- Flexible Venting Options - Long venting lengths up to 100 feet
- PVC, ABS, or CPVC vent pipe options
- Vertical or horizontal termination
- New Quiet Blower - Less noise than ever before
- Self-Diagnostic System - Integrated self-diagnostic system control takes the guess work away
- Environmentally Friendly Burner - Low NOx design for low nitrous oxide emissions
- High Altitude Compliant - Certified for applications up to 7,700 feet above sea level
- Longer Life - Patented magnesium anode rod design incorporates a special resistor that protects the tank from corrosion
- Provides longer tank life than using standard magnesium anode rods
- Durable silicon nitride ignitor (HSI)
- Standard 110 volt electrical connection
- Exceeds National Appliance Energy Conservation Act (NAECA) and ASHRAE requirements
- Durable brass drain valve
- Temperature and pressure relief valve - AGA/ASME rated and factory installed
Extra Info:
- 75,000 BTU/Hr.
- Uses 3" or 4" schedule 40 PVC, CPVC or ABS pipe
- Vents up to 95 feet
- 75 gallon capacity
| |
| |
|
|
| |

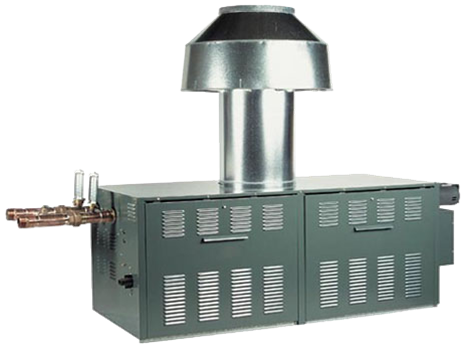

Hot Water Supply Heaters Series
|
Features:
- 82% Thermal Efficiency
- Indoor and outdoor installations
- Natural Gas or LP
- Heat Exchanger: Finned copper tubes, ASME steel tubesheet, Silicon O-rings, 125 PSIG ASME pressure relief valve, Glasslined cast iron headers
- Energy saving pump control
- Flow switch
- Spark-to-pilot ignition system
- High limit control
- On/Off switch
- Flame roll-out sensor
- Manual gas shut-off cock
- Main gas pressure regulator
- Safety shut-off valve, redundant
Extra Info:
- 136,000 - 1,826,000 BTU/Hr.
- 82% thermal efficiency
- Indoor and outdoor installations
- Certified for a 160 PSI maximum working pressure
| |
| |
|
|
| |
|
|
|
|
| |
|
|
