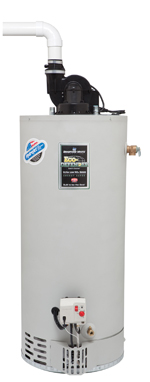

LIGHT DUTY TTW® ECO-DEFENDER SAFETY SYSTEM® ENERGY SAVER MODELS

Eco-Defender Safety System® Ultra Low NOx Series water heaters from Bradford White utilize the latest advances in technology and materials for an ecologically friendly line of water heaters. Our TTW® models are power vented for positive exhaust. They offer greater installation flexibility with the ability to vent through a wall or roof, with either 3" or 4" PVC, ABS or CPVC pipe.

• Vertical or Horizontal Venting up to 120 ft. (with 3 PVC, ABS, CPVC)
• 2 Models (48 and 65 gallon capacities)
• 60,000 BTU/Hr.
• FVIR Defender Safety System®

(Sample model numbers include: U-TW4-50S-60FR-3N, U-TW4-65S-60FR-3N)

Standard Energy Saver Features:

• Ultra Low NOx Burner with Primary and Secondary Air Distribution Devices
• Advanced ScreenLok® Technology Flame Arrestor Design
• Flammable vapor sensor
• Pedestal base
• Maintenance free
• Sight Window
• Powerful blower motor
• ¾" NPT factory installed dielectric waterway fittings
• Power Vented Water Heater
• Spark to pilot ignition system
• Horizontal and Vertical Venting
• 3/4" NPT side connections for space heating
• Vitraglas® lining
• Protective magnesium anode rod
• Factory installed Hydrojet® Total Performance System
• 2" Non-CFC Foam Insulation
• Honeywell Self Diagnostic Electronic Control
• Brass drain valve
• T&P relief valve installed

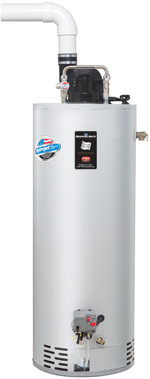

LIGHT DUTY TTW® HIGH PERFORMANCE
POWER VENT ENERGY SAVER MODELS

High Performance Series™ water heaters provide incredible hot water delivery from a space saving, convenient package. These models are perfect for applications where venting and space are a concern and if the required hot water demand is more than one standard water heater can produce.

• High first hour delivery
• 2 models (25 and 55 gallon capacities)
• 76,000-78,000 BTU/Hr.
• Thermostat adjustable up to 180°F

(Sample model numbers include: TW-25X-76B-3N and TW-55X-78B-3N)

Standard Features:

• High Input Combustion System
• Integrated mixing device
• Factory installed Hydrojet 2™ Total Performance System
• Powerful blower motor
• Horizontal and vertical venting
• Honeywell Self Diagnostic Electronic Gas Control
• Flammable vapor sensor (not FVIR)
• Spark to Pilot ignition system
• Vitraglas® lining
• ¾" NPT side connections
• Non-CFC Foam Insulation
• ¾" NPT factory installed dielectric waterway fittings
• Two Protective magnesium anode rods
• Helical Fin Flue
• Pedestal base
• T&P relief valve installed
• Brass drain valve

EF SERIES® ULTRA HIGH EFFICIENCY ENERGY SAVER MODELS

The eF Series® utilizes exclusive designs and technologies for unsurpassed efficiency, installation flexibility and quiet operation.

With thermal efficiencies as high as 99.1% these units are the most efficient of their kind in the industry. A new Honeywell Integrated Control System combines temperature control and system ignition functions into a single control board with digital LCD display. Operation mode digitally displays the adjustment of temperature setting (70°F-180°F), and adjustment of degree setting (°F to °C or °C to °F). Service Mode has the capability of adjusting the temperature setting up to 180°F (82°C), adjusting the degree setting (°F to °C, or °C to °F), locking the maximum temperature setting that can be adjusted in operation mode, displaying the average water temperature (if water heater has two sensors), displaying the upper temperature sensor, displaying the lower temperature sensor, displaying the flame current of the pilot flame, and displaying diagnostic codes.

• 16 Models (60-100 gallon capacities)
• 125,000-399,999 BTU/hr.
• Up to 99.1% thermal efficiency
• Power vent or Power direct vent
• Thermostat adjustable up to 180°F

(Sample model numbers include: EF-60T-125E-3N, EF-100T-150E-3N, EF-100T-300E-3NA, & EF-100T-399E-3NA):

• Honeywell Integrated Control
• Digital LCD Display with Operation and Service Mode
• Electronic Ignition (Direct Spark)
• Low NOx Premix Power Burner
• Hydrojet® Sediment Reduction System
• Vitraglas® lining
• Sanitizing capability
• Vertical or Horizontal venting
• Power Vent or Power Direct Vent
• Optional Concentric Vent Kit termination
• Hand hole cleanout
• Multiple dielectric waterway fittings
• Magnesium anode rods
• ASME construction available
• T&P relief valve installed
• Brass drain valve

COPPER BRUTE II MODELS

Copper Brute II Fan Assisted models provide hot water almost instantaneously with the ability to meet any commercial application demanded.

Unique features such as a sealed combustion chamber, a power assisted fan and a proportional firing system offer highly efficient and consistent operation. The compact size, a smaller vent stack and a variety of venting options make installations easier, less time consuming and more economical.

(Sample model numbers include: BWCV1000, BWCV1250 & BWCV1500)

Optional Equipment

• Copper-nickel heat exchanger
• High/low gas pressure switch
• Normally open vent valve
• Low water cutoff
• Motorized gas safety valve
• Double stack stand
• Hot surface ignition
• On/Off toggle delay
• Diagnostic lights
• Less than 10 ppm NOx
• Optional Equipment
• Copper-nickel heat exchanger
• High/low gas pressure switch
• Normally open vent valve
• Low water cutoff
• Motorized gas safety valve
• Double stack stand

Standard Features:

• Thermal efficiency up to 85%
• ASME 160 psi working pressure heat exchanger
• ASME "H" stamp
• Flanged Water connections
• Glass-lined header
• External header gaskets
• 125 psi (861 kPa) ASME rated pressure relief valve (BWCV)
• Flow switch
• Temperature/pressure gauge
• Pump, mounted and wired
• Multiple operating gas valve/pressure regulators
• Manual "A" gas valve
• Intake air filter
• Multiple, removable burner trays
• Stainless steel burners
• Built-in draft fan for Category 1 or 3 vent systems
• Air pressure switch
• Burner site glass
• 24V control system
• 115/24VAC transformer
• Manual reset high limit
• Automatic reset high limit
• Electronic PID staging control with LCD and touchpad
• PC board for electrical connections
• External controller connections with selecter switch
• Hot surface ignition
• On/Off toggle delay
• Diagnostic lights
• Less than 10 ppm NOx
